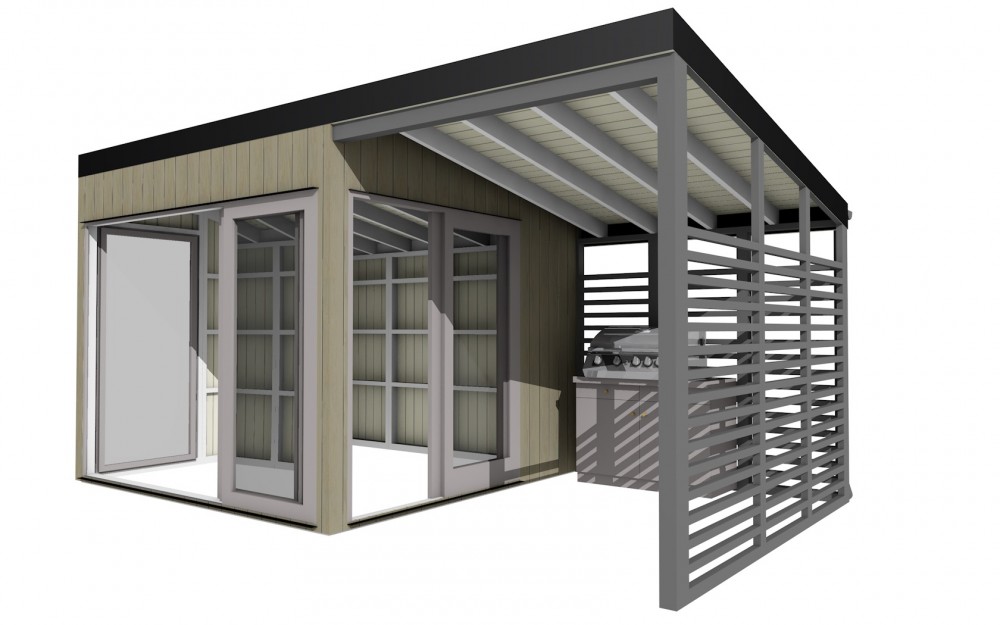

The new EASY Cube with Grill Extension collection is stylish and has a very practical layout. The new two-part model can be a summer kitchen, garden hut, barbeque area, meeting place for young people or a personal studio where creativity starts to fly. … It’s a multipurpose barrier suitable for both the modern and the traditional house.

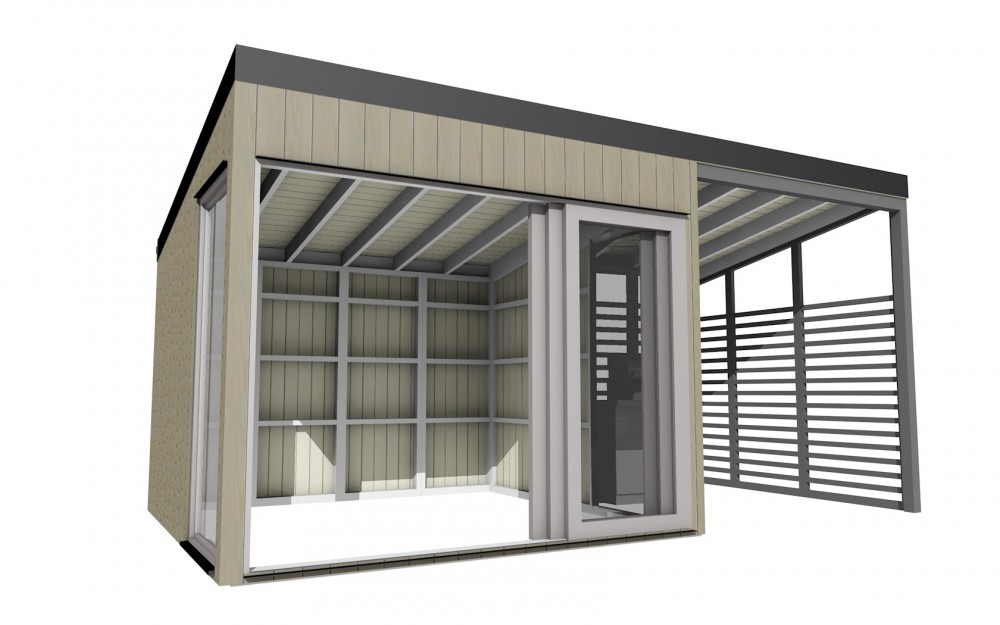

The lockable sliding doors of the Easy Cube are integrated into two sides. In good weather, the sliding doors can be opened, and the extension space can be integrated into a unified space.
Size 9 m2 + extension of 6 m2
Roof panels from spruce;
Self-adhesive bitumen membrane for roof covering;
Roof-door-windows tin finishing;
Standard wall panels from spruce with impregnated bottom parts;
Decorative sunscreen walls with impregnated bottom parts;
1 aluminum glass wall Alutech (1000 x 2200 mm);
2 aluminum sliding doors systems Alutech (3 rails and 2 rails);
Roof: 45 x 120 mm frame with 18 x 145 mm finishing boards; Roof covered with black self-adhesive bitumen membrane and tin finishing;
Roofing slope: 100;
Easy cube walls: Front and back wall frames 45 x 95 mm; Sidewalls frames 45 x 45 mm; Panels covered with outside 18 x 145 vertical spruce cladding (tongue and groove);
Extension walls: Back wall frames 45 x 95 mm; Sidewall frames 45 x 45 mm; Horizontal sunscreen walls consists of 45 x 45 mm wood.
External dimensions (width x depth): 5620 x 3140 mm;

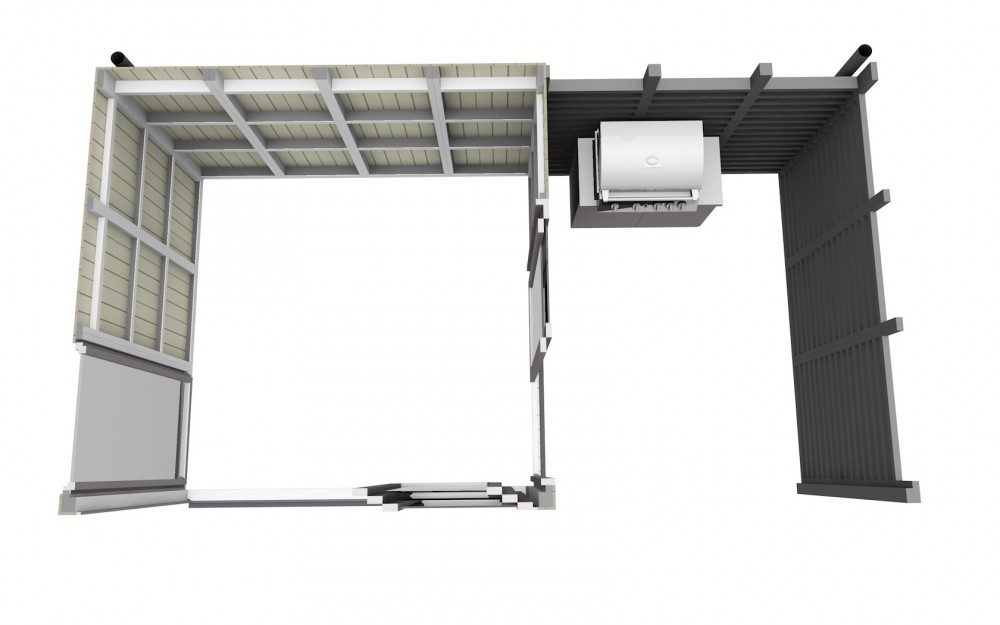

Internal dimensions (width x depth): Cube 3110 x 2910 mm; Extension 2340 x 2910 mm;
Aluminum sliding doors system Alutech (width x height): Front3000 x 2200 mm (3 rails), side 2000 x 2200 mm (2 rails);
Aluminium glass wall Alutech (width x height): 1 pc 1000 x 2200 mm;
Terrace floor made from corrugated spruce wood with frame;
Tongue and groove floors.

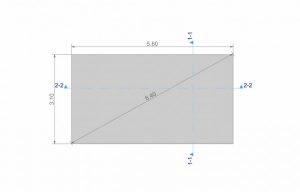

It is very important to have a proper foundation for your cube. Therefore we recommend making the foundation according to the sketches here. First of all, the foundation must be prepared according to the landscape and ground conditions. Consult a qualified builder or an engineer to prepare a proper foundation, which fits your location. Make sure to complete the site preparation and the foundation before unpacking and assembling the cube.
Minimum Foundation size (width x depth): 5600 x 3100 mm
You should not forget that wood is a natural material, it changes move depending on weather conditions. Large and small cracks, colour tone differences and changes, as well as a changing structure of wood are not errors, but a result of wood growing and a feature of wood as a natural material. Natural wood (not impregnated) becomes greyish after having been left untouched for a while and can be turned blue and become mouldy. You should immediately process them with wood impregnations to protect the wooden details of our produced products.
We definitely recommend that you process the door and windows with a wood impregnation agent, and do it namely both inside and outside, because the doors and windows can become twisted. In general, we recommend for the conclusive finishing a weather protection paint that will protect the wood from moisture and UV radiation after the house is assembled. Consult a specialist regarding paints suitable for unprocessed softwood and follow the paint manufacturer’s instructions. Your grill cabin lifetime will be much longer after having properly painted. We recommend that you inspect the house thoroughly once every six months.
This product is delivered to the customer not assembled, but with detailed assembly instructions and drawings, and packed on a pallet (KIT).
