LOFT HOUSE 24/II F

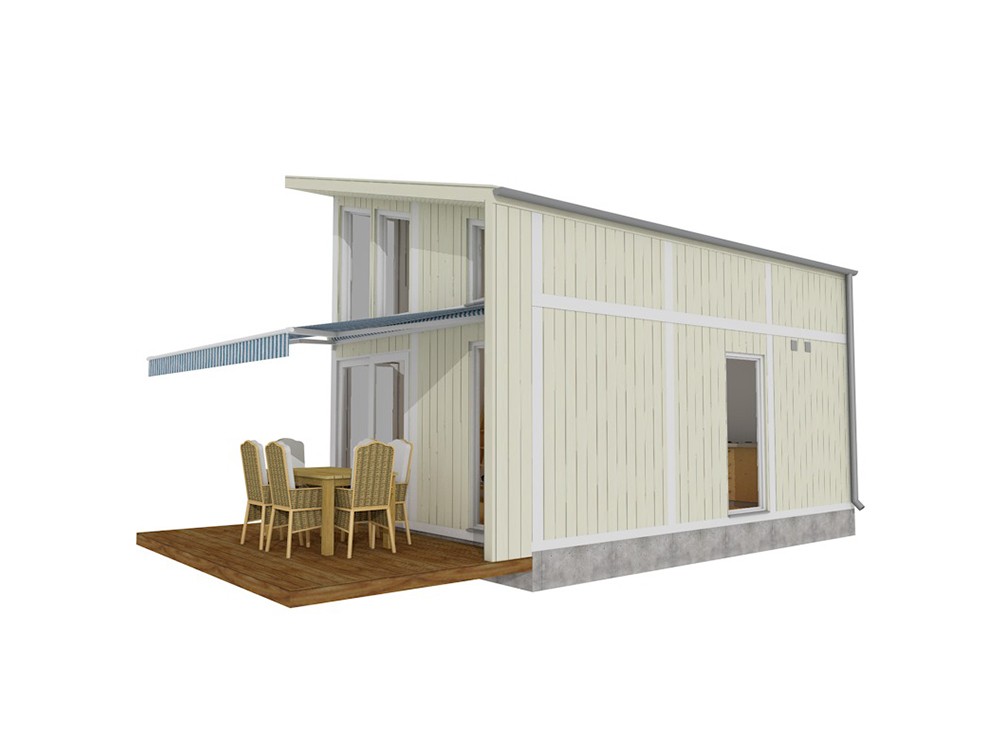

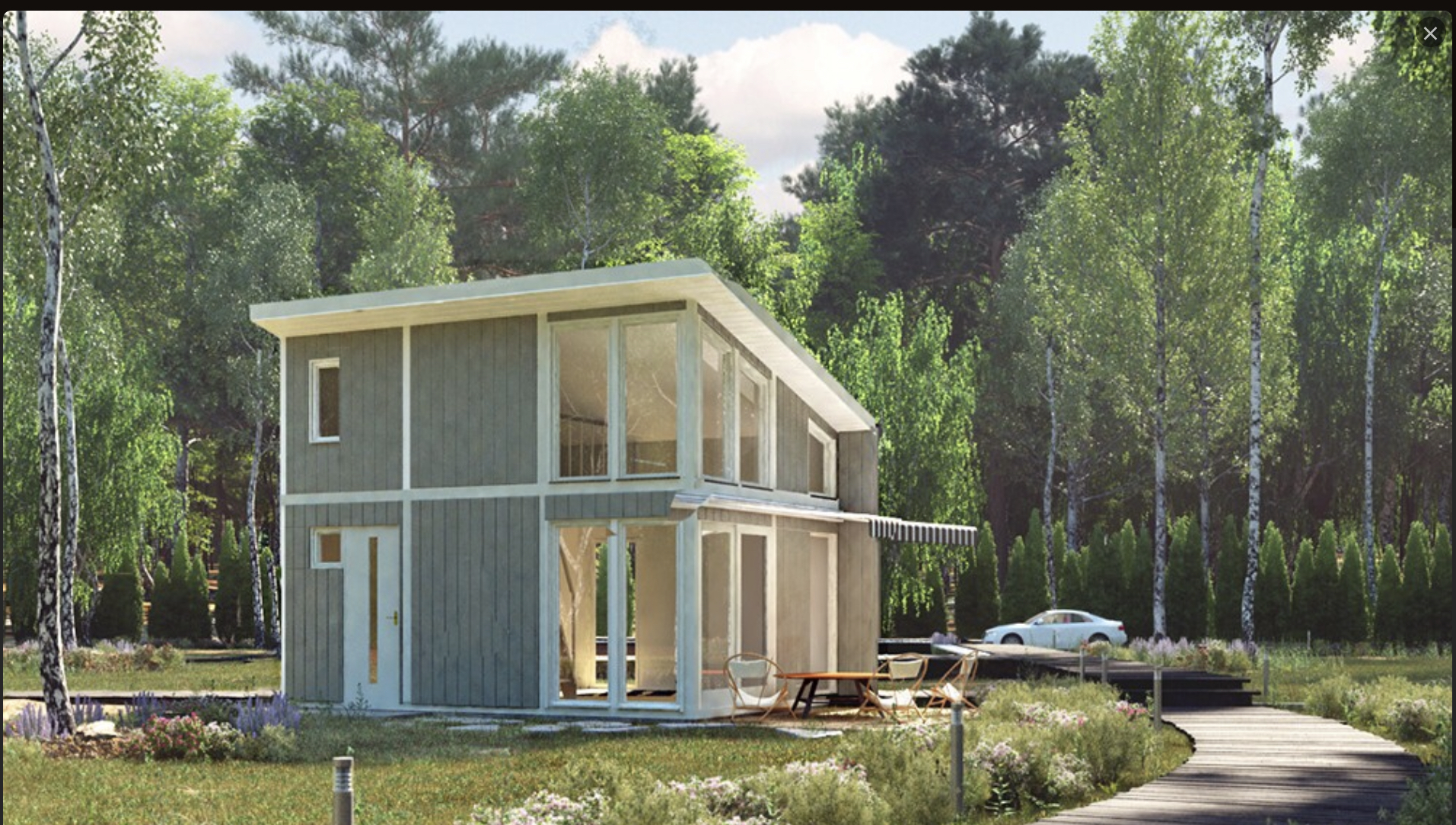

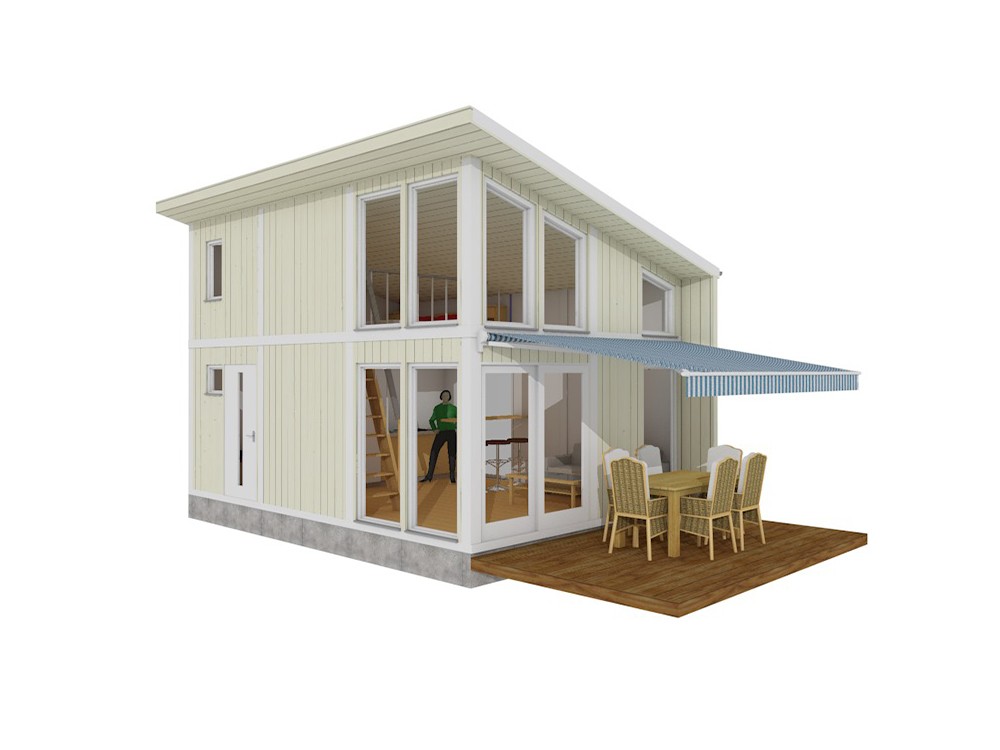

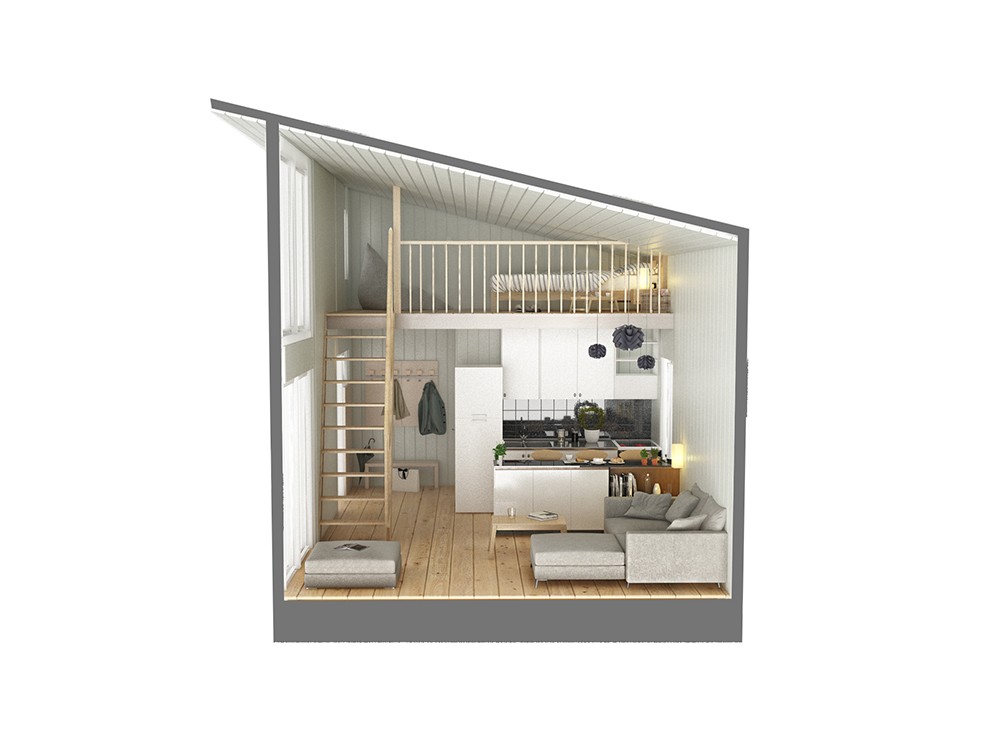

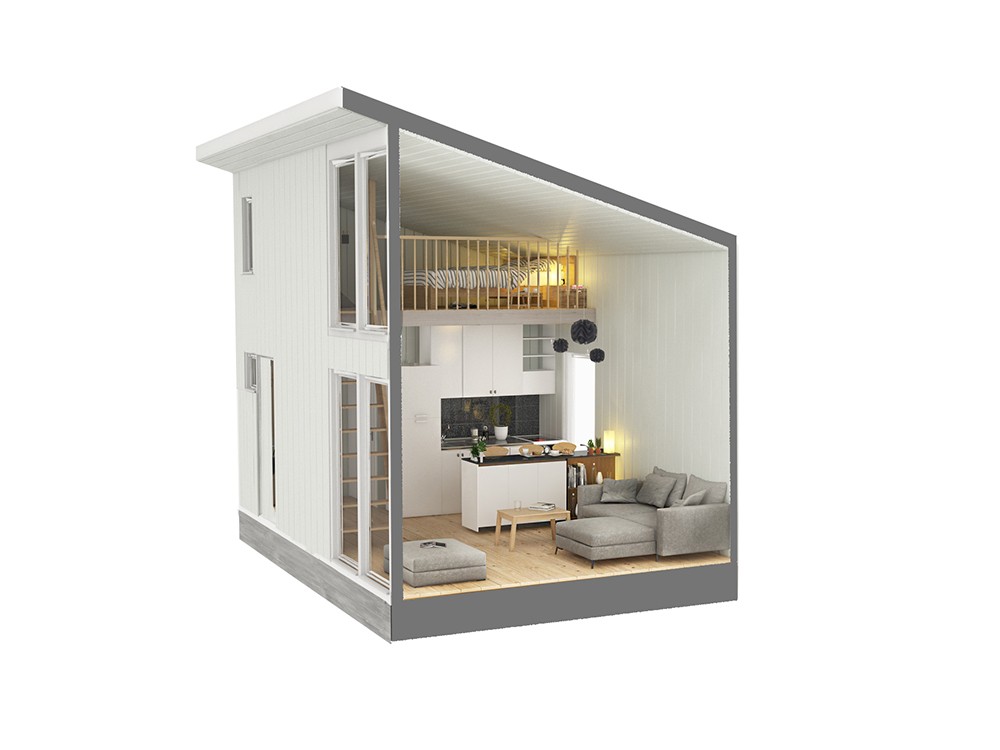

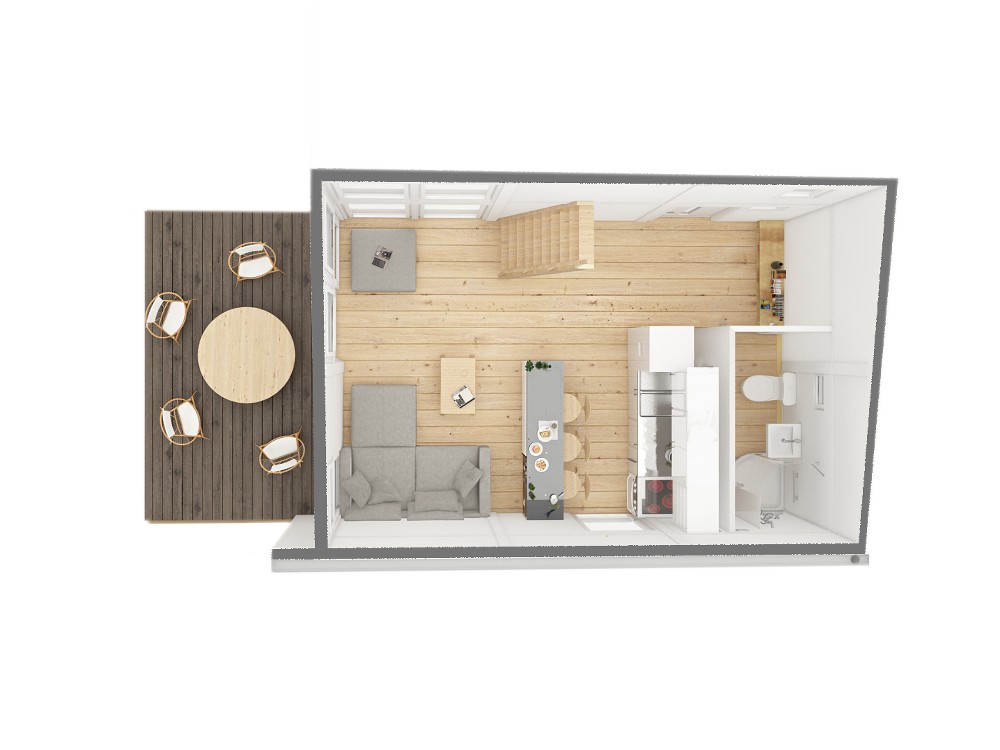

virtual external view of two storey loft house with deckingvirtual external view of two storey loft housevirtual side internal view of two storey loft housevirtual side internal view of cabin and deckingvirtual top internal view of cabin and decking

Now it’s possible to have a permanent residence during the year-round standard – perfect as a guest house – rental or first house for young people.  Our Loft House 24 m2 you can use as guest cottage, permanent residence or something else that fits your lifestyle. Entire 24 m2 meters plus loft with a place for a functional kitchen. In addition, you get one spacious living room (20.9 m2), a lovely mezzanine bedroom (11.5 m2) and one bathroom (2.9 m2). The loft it’s accessed by a fixed ladder with deep stair-like steps. Large windows and generous ceiling height provides light and space that make the house feel significant larger than its 24 m2.

Standard Set

  • Loft House frame from spruce;
  • Insulated roof panels with bitumen weld coating;
  • Insulated wooden floor;
  • 25 standard insulated full panel walls;
  • 2 insulated full panel walls with small windows (1 of them is opening);
  • 10 wooden tempered glass walls;
  • Aluminum 2-rails sliding door system Reynaers 2000 x 2200 mm;
  • Wooden door with a lock and a tempered glass window;
  • Rainwater pipes;
  • Ventilation;
  • Wooden stairs;
  • Terrace made from corrugated spruce wood with frame;
  • Different spaces: sitting room
  • shower room and mezzanine style loft.
Category:

The frame is made from glue-laminated spruce beams. Frame consists of bottom frame (100 x 140 mm), columns (140 x 140 mm), top frame (140 x 140 mm) and withstands 180 kg/m2 roof loads.  Roof: 4.81 m high / 15% slope.  Inside height until loft: 2500 mm.
Exterior walls, roof and floor are insulated with 50 mm thick stone wool. The wall elements inside (for shower room) not insulated, 70 mm thick. There are 12 windows in the Loft House.

Windows for 1st floor: 2 wooden tempered glass windows (the size of windows – 500 x 500 mm, the thickness of the brown-tinted glass is 6mm). One of these 2 windows is opening; 4 wooden tempered glass windows (the size of windows is 855 x 2100 mm and the thickness of the glass is 8 mm.

Windows for 2nd floor: 1 wooden tempered glass window (the size is 855 x 1800 mm, the thickness of the glass is 8 mm); 3 wooden tempered glass windows (the size is 855 x 1548 mm, the thickness of the glass is 8 mm); 1 wooden tempered glass window (the size is 855 x 1013 mm, the thickness of the glass is 8 mm); 1 opening wooden tempered glass window (the size of the window is 500 x 1000 mm, the thickness of the glass is 6 mm).

Doors. Wooden outside door of size 900 x 2100 mm. Outside aluminium, 2-rails sliding door system Reynaers 2000 x 2200 mm. Wooden inside shower room door of size 800 x 2100 mm.

Foundation

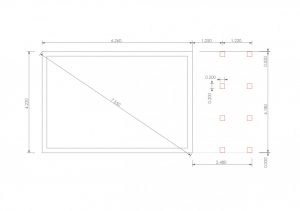

It is very important to have a proper foundation for your Loft House 24. Therefore we recommend making the foundation according to the sketches here. First of all, the foundation must be prepared according to the landscape and ground conditions. Consult a qualified builder or an engineer to prepare a proper foundation, which fits your location. Make sure to complete the site preparation and the foundation before unpacking and assembling the House.

Options

  • 50 mm wool insulation (standard)
  • 100 mm wool insulation
  • 150 mm wool insulation

More opening windows in Loft House.

MAINTENANCE

You should not forget that wood is a natural material, it changes move depending on weather conditions. Large and small cracks, colour tone differences and changes, as well as a changing structure of wood are not errors, but a result of wood growing and a feature of wood as a natural material. Natural wood (not impregnated) becomes greyish after having been left untouched for a while and can be turned blue and become mouldy. You should immediately process them with wood impregnations to protect the wooden details of our produced products.

We definitely recommend that you process the door and windows with a wood impregnation agent, and do it namely both inside and outside, because the doors and windows can become twisted. In general, we recommend for the conclusive finishing a weather protection paint that will protect the wood from moisture and UV radiation after the house is assembled. Consult a specialist regarding paints suitable for unprocessed softwood and follow the paint manufacturer’s instructions. Your grill cabin lifetime will be much longer after having properly painted. We recommend that you inspect the house thoroughly once every six months.

Delivery

Delivery: from 12 weeks. Mini House 24 m2 is delivered to the customer not assembled, but with detailed assembly instructions and drawings packed on a pallet (KIT).
