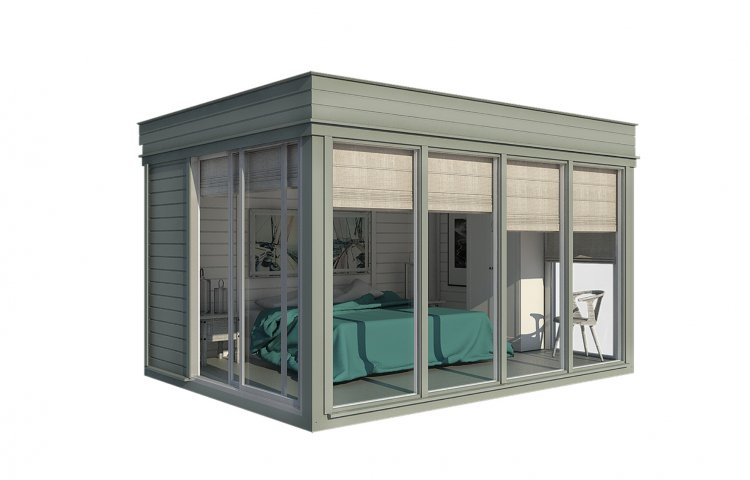

Hotel 3×4

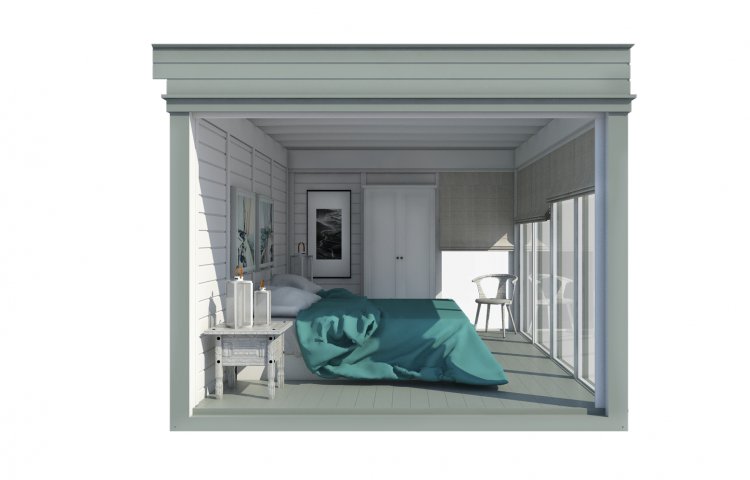

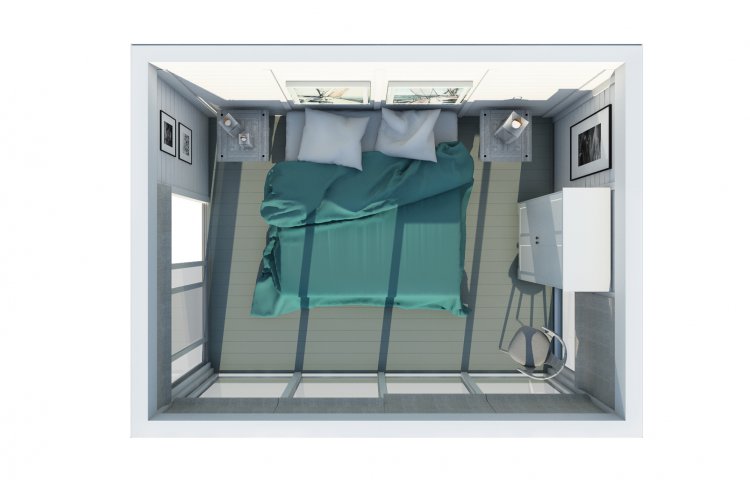

Insulated office cube side layout viewInsulated office cube top layout view

This perfect garden Hotel is for two persons.

Standard Set

  • Insulated cube frame 3 x 4 m from spruce;
  • Wooden floor (from spruce);
  • Roof covered with black bitumen weld coating (4 panels);
  • 7 standard insulated panel walls;
  • 5 Wooden glass walls with glass package
  • Aluminium sliding doors system Reynaers 2 rails;
Price:
£11,499.00

Out of stock

Category:

Viking Cube frame from spruce: insulated floor and roof panels, 4 columns. Insulation – stone wool (50 mm). The frames are made from glue-laminated spruce beams. Frame consists of bottom frame (135 x 90 mm), columns (135 x 135 mm), top frame (135 x 220 mm) and withstands 442 kg/m2 roof load. The floor is made of 146 x 28 mm floorboard. Built with 135 x 90 mm joists.

Aluminium 2-rails sliding door system with locks Reynaers (2000 x 2200 mm). Design depth is 50 mm for wings and 120 mm for frames double ground ways and 184 mm for triple ground ways frames. Airtightness: up to 600 Pa (class 4); Water tightness: up to 300 Pa (class 7A); Wind load resistance: up to 1600 Pa (class 4); The thickness of the glass packet: 24 mm; Thermal mould: 1.1 W/(m2 K); System profile frame: 45 mm; Color: metallic/white. Sliding doors in both directions.

Insulated full panel wall. Panel size is 1000 x 2200 mm; Wall frame 45 x 45 mm, insulation – 50 mm (stone wool), panel covered with inside 96 x 12 mm and outside 145 x 18 mm spruce cladding boards. The thickness of the finished wall segment is 75 mm. A wooden glass wall with glass package. Panel size is 1000 x 2200 mm; Wall frame 75 x 45 mm with glass package of one chamber (2 glasses) window.

The walls, floor and roof of our cube are all insulated to lower energy costs. We use stone wool to insulate cubes for this reason: fire resilience,
thermal properties, acoustic capabilities, durability, aesthetics, water properties, circularity.

We include all of the screws, nails and fixings needed to put your cube together. So there’s no need to worry about the type of screws or length etc you might need to get started, it’s all there in the pack!

MAINTENANCE

You should not forget that wood is a natural material, it changes move depending on weather conditions. Large and small cracks, colour tone differences and changes, as well as a changing structure of wood are not errors, but a result of wood growing and a feature of wood as a natural material. Natural wood (not impregnated) becomes greyish after having been left untouched for a while and can be turned blue and become mouldy. You should immediately process them with wood impregnations to protect the wooden details of our produced products.

We definitely recommend that you process the door and windows with a wood impregnation agent, and do it namely both inside and outside, because the doors and windows can become twisted. In general, we recommend for the conclusive finishing a weather protection paint that will protect the wood from moisture and UV radiation after the house is assembled. Consult a specialist regarding paints suitable for unprocessed softwood and follow the paint manufacturer’s instructions. Your Cube lifetime will be much longer after having properly painted. We recommend that you inspect the house thoroughly once every six months.

Foundation

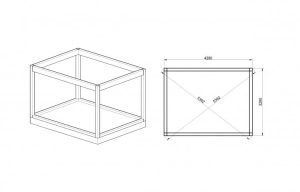

It is very important to have a proper foundation for your Garden Cube. Therefore we recommend making the foundation according to the sketches here. First of all, the foundation must be prepared according to the landscape and ground conditions. Consult a qualified builder or an engineer to prepare a proper foundation, which fits your location. Make sure to complete the site preparation and the foundation before unpacking and assembling the Garden Cube.

Specifications

Inside area

Total height

Floor thickness

Roof thickness

Exterior Cladding

Interior Cladding

Wall thickness

Insulation

External dimensions

Door size

Window size

Timber

12 square meters

2780 mm

128 mm

145 mm

18 mm

12 mm

75 mm

50 mm stone wall

3286 x 4286 mm

2000 x 2200 mm

1000 x 2200 mm

Spruces
