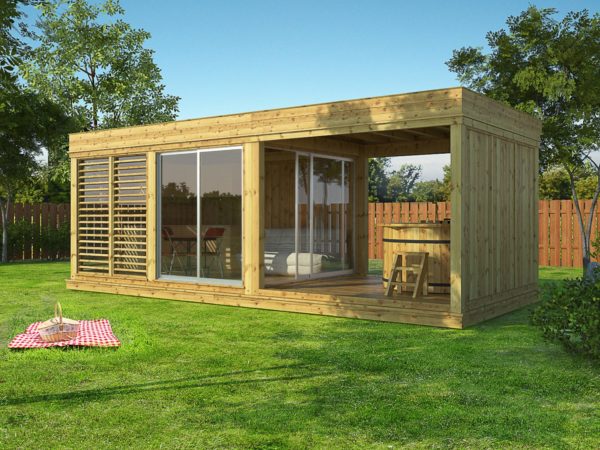

Garden Cube 4×3 and 3×3 Model

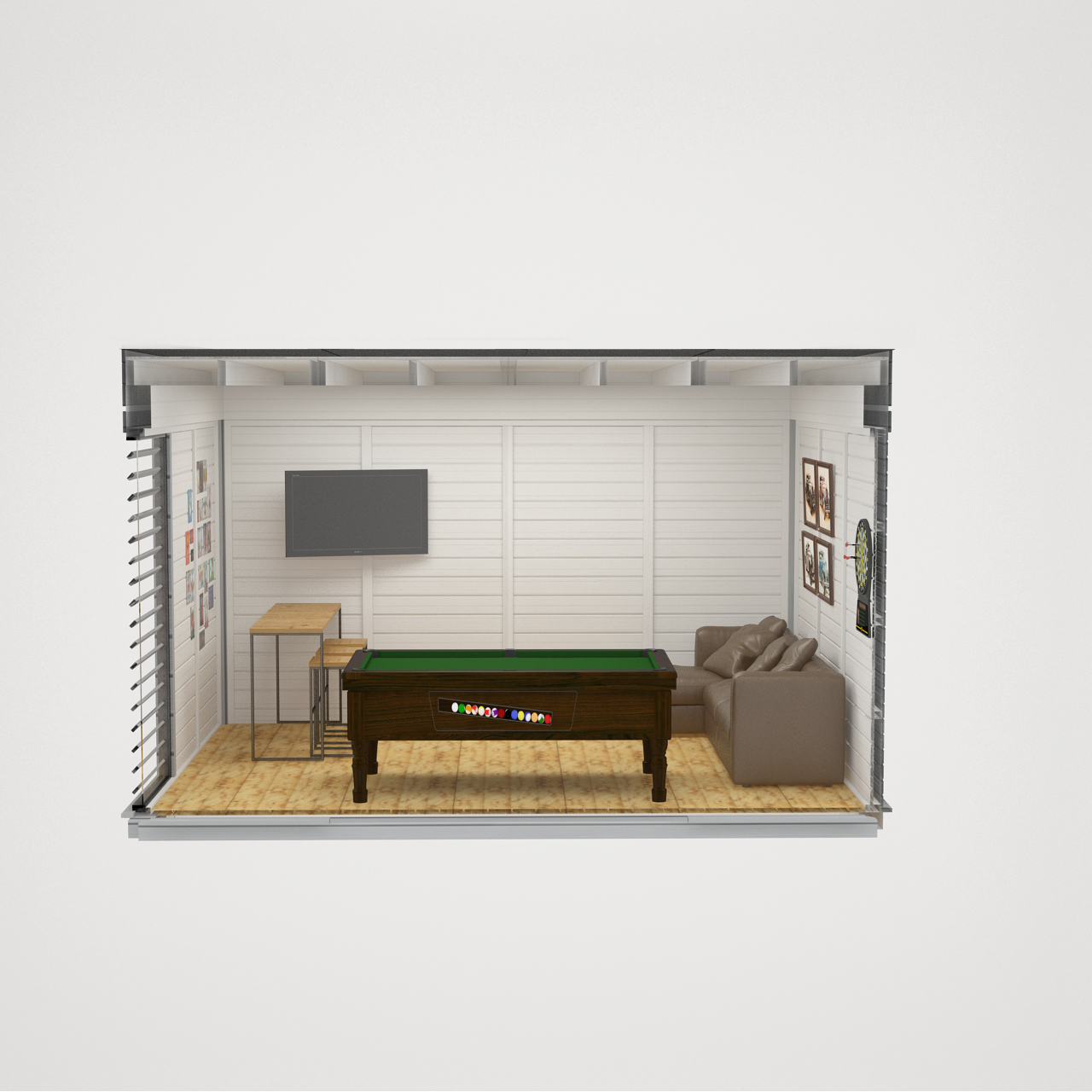

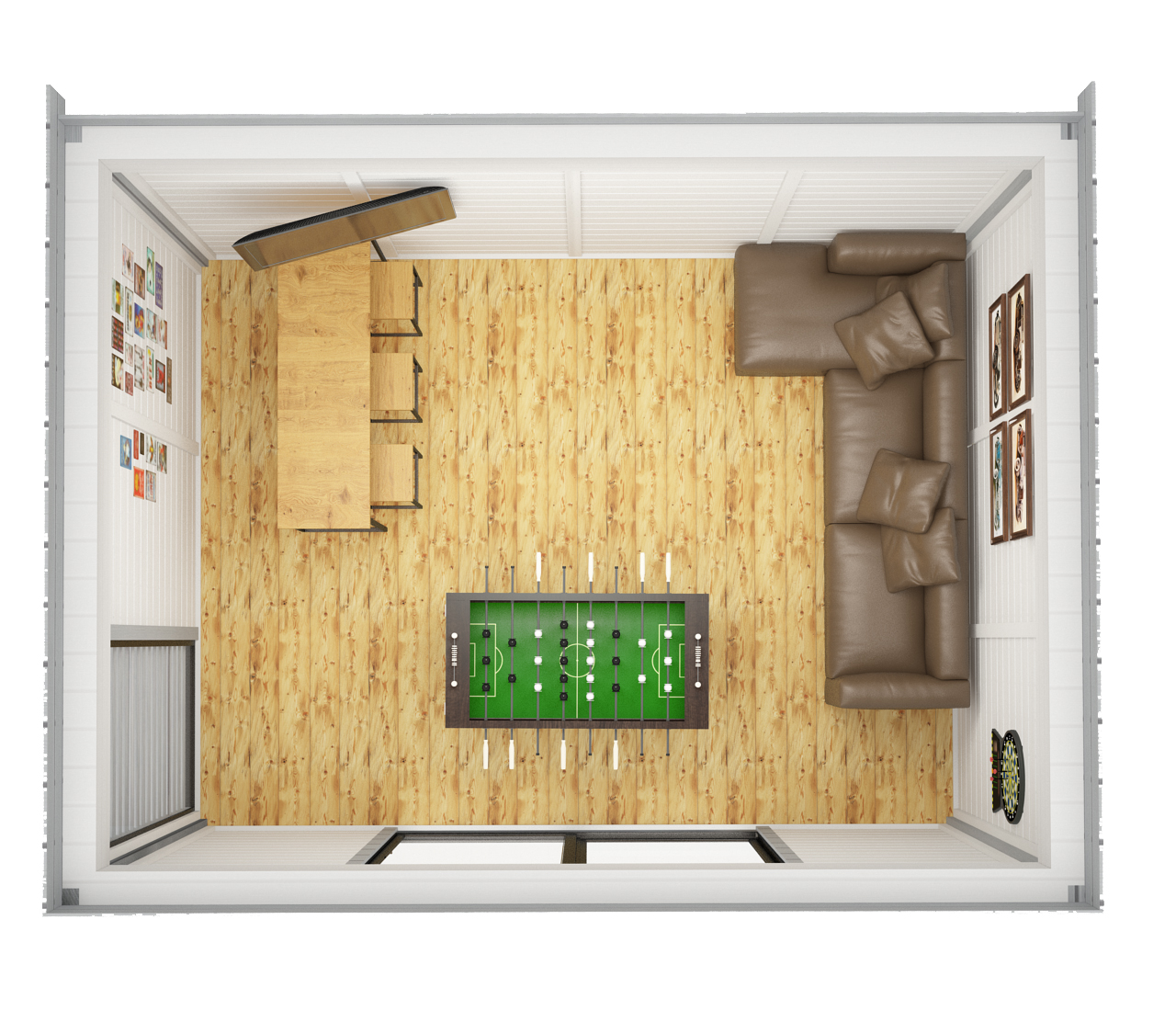

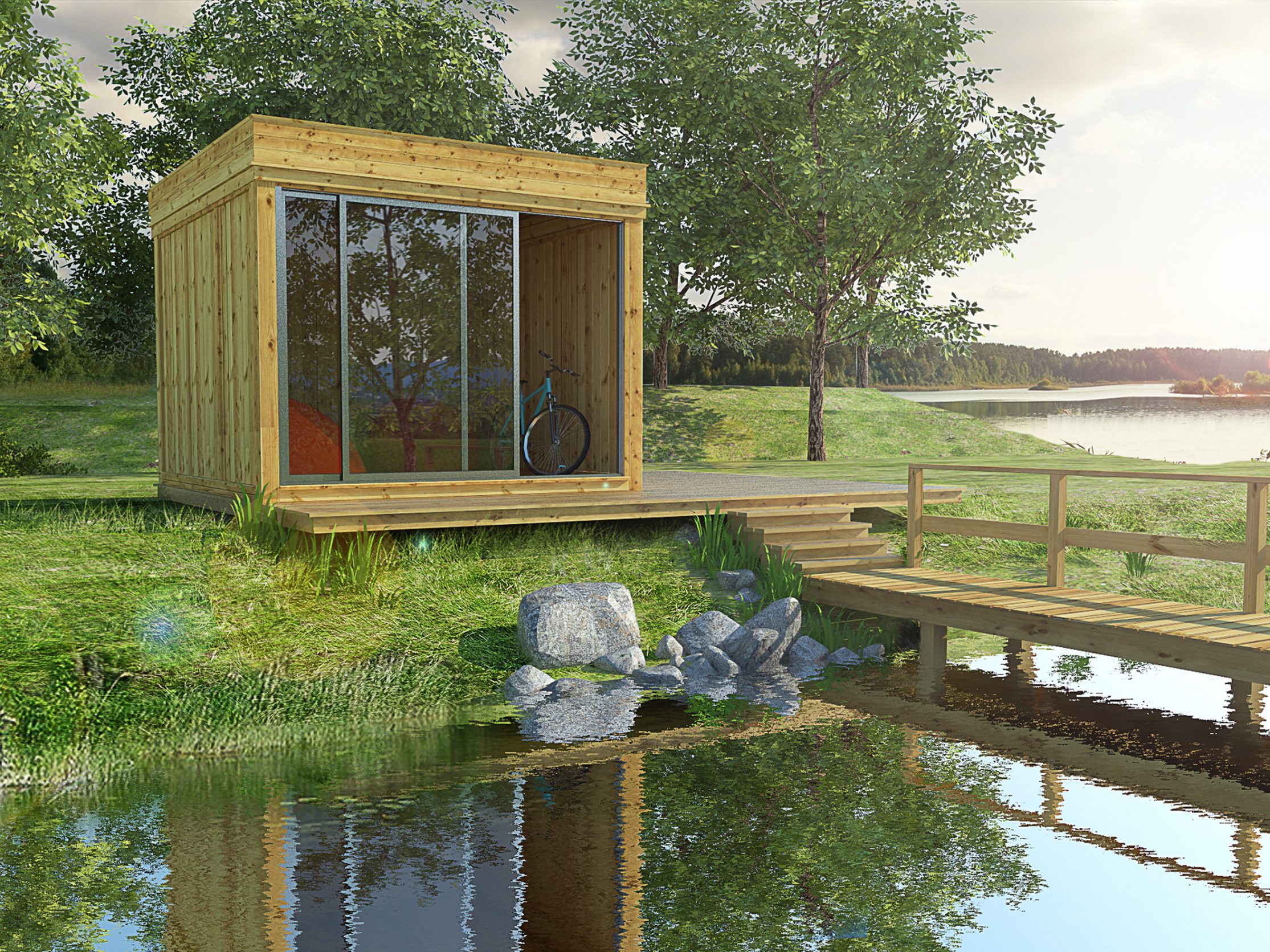

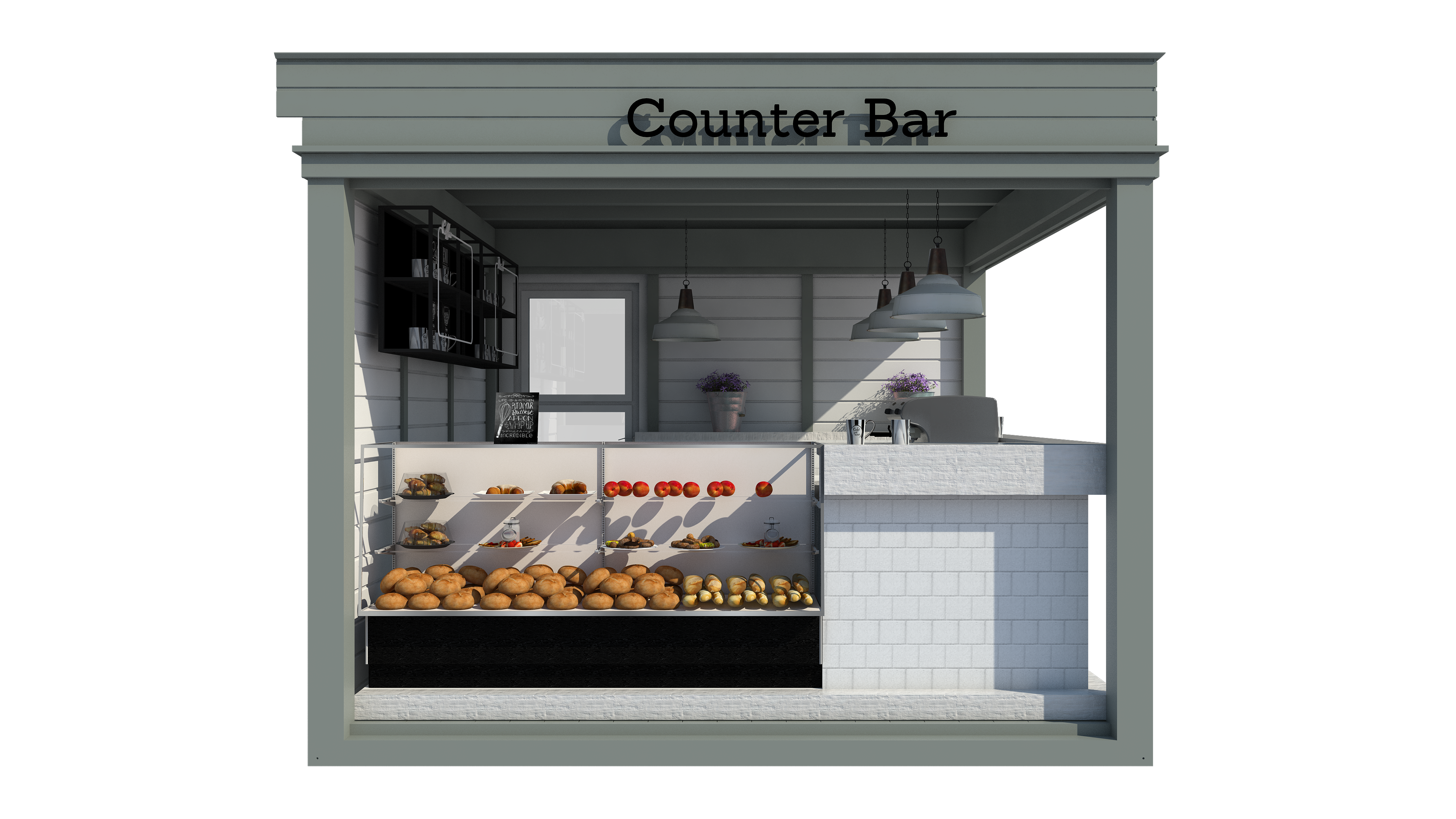

Garden Cube 3×3 Model 2Garden CubeGarden Cube 4×3 with curtainsGarden Cube 4×3 with sliding systemcafebar frontgymoffice2A1F5CD1-7D77-4D8E-8678-DF5E9C72BCD4Garden cube internal top view sports roomGarden cube internal side view sports roomGarden cube internal top viewGarden cube internal view

Your outdoor space is your first chance to inspire and make an impression on neighbours and guests, so your GARDEN CUBE can be your a much-needed boost. You can design your own GARDEN CUBE, just choose a frame size and walls of our suggesting models.

Standard Set

  • Garden cube frame from spruce
  • Roof covered with bitumen weld coating
Category:

GARDEN CUBE FRAMES

The Garden Cube frames are constructed from beams of glue-laminated spruce. The frame consists of bottom frame (140 x 100 mm), columns (140 x 140 mm), top frame (140 x 240 mm) and withstands 442 kg/m2 roof load.

They are perfect material for exceptionally stable and high-quality timber construction.

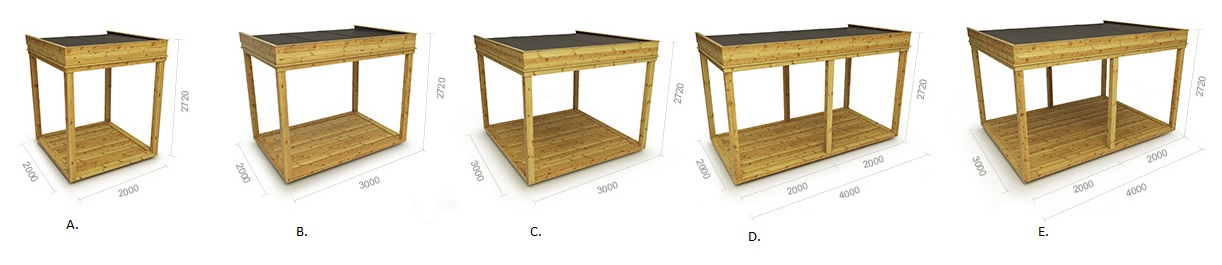

cubesdimensions

THE FLOOR

The floor is made of floorboards measuring 146 x 28 mm.

Built with 135 x 90 mm joists.

THE WALLS

The 1000 x 2200 mm walls are made of FSC spruce wood – certified Northern European spruce forests.

The light, golden-white spruce are ideal for Cubes constructions designs.

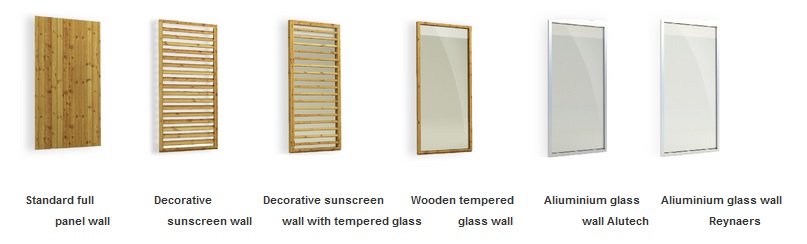

cubewalls

  • Standard full panel wall. Wall frame 75 x 45 mm, panel covered with inside 96 x 12 mm and outside 145 x 18 mm vertical spruce cladding boards.
  • Decorative sunscreen wall. Wall frame 75 x 45 mm, horizontal sunscreen wall consists of 18 x 95 mm boards.
  • Decorative sunscreen wall with tempered glass. Wall frame 75 x 45 mm, horizontal sunscreen wall with full tempered glass window.
  • Wooden tempered glass wall. Wall frame 75 x 45 mm with full tempered glass window.
  • Aluminium glass wall Alutech.  45 mm frame wide, the aluminium profile of size 1000 x 2200 mm.
  • Aluminium glass wall Reynaers.  47 mm frame wide, aluminium profile of size 1000 x 2200 mm with glazing: 2 x 4mm 2 x 4 U=1.1 4/xArTGI/4 GNP.

THE ROOF

The roof panels are designed with double rafters and are covered by 18 x 145 mm finishing plates.

This construction withstands 442 kg/m2. All Garden Cube buildings roofs are 2.7 m high and  1.310  (2.29%) slope.

We use hydro-insulating SBS to ensure the highest level of waterproofing. MIDA UNIFLEKS – modified bitumen weld coating. For the top hydro-insulating protective layer of the roofing for Cube roofs, it is made of two types: surfaced with quartz sand for the bottom layer of the roofing and surfaced with a slate that ensures perfect UV protection.

The service life of MIDA UNIFLEKS roofing is 30-40 years. This is the most popular solution for living roofs.

THE DOORS

The doors used in Garden Cubes come in several different materials: spruce wood doors with tempered glass windows and two models of aluminium doors with sliding system, which are very popular.

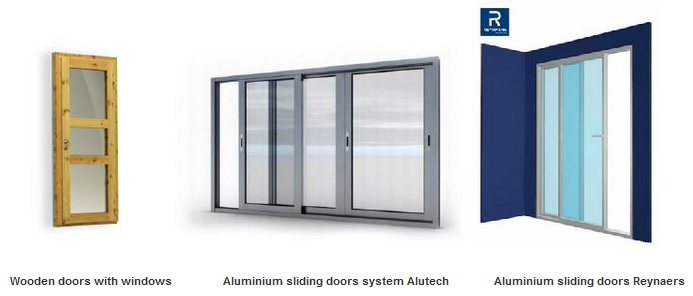

cubedoors

Wooden doors with tempered glass windows.  817 x 2035 mm wooden doors with large tempered glass windows.

Aluminium sliding doors system Alutech.

Sliding sections are framed with aluminium plates, made with non-insulating gaskets from “cold” single-chamber aluminium profiles. The aluminium frame is designed to slide so that the whole structure is stable.
The frame wheels, designed for movement attachment and with aluminium profiles for vertical and horizontal adjustment, make moving parts particularly easy to move.

Sealing brush prevents dust from entering the structure and compensates for vibration summer dresses in the wind. Each moving part is very easy to remove and put back into place, so cleaning glass from the outside is no problem.

The system has automatically locked and unlocked positions, handles and locks installed into the aluminium profile in the closed position, so that the glass still remains clean during the opening.

Characteristics of the system:

System profile: wide of 30 mm frame;
A door profile depth of the frame and the sash: 45 mm;
Glass thickness: 6 mm;
This is a single-chamber aluminium system.

Aluminium sliding doors system with locks Reynaers. The system with thermal insulation, manufactured from „warm“ two-chamber aluminium profile with thermal insulating gasket. Design depth is 50 mm for wings and 120 mm for frames double ground ways and 184 mm for triple ground ways frames.

Characteristics of the system:

Airtightness: Up to 600 Pa (class 4);
Water tightness: Up to 300 Pa (class 7A);
Wind load resistance: Up to 1600 Pa (class 4);
Glass thickness: 6 mm;
Profile frame: 17 mm.

THE RAINWATER PIPES

The rainwater pipe package includes 4 m straight gutter and all parts needed for installation.
Downpipe package includes 2.5 m downpipe and all parts needed for installation.

No specific measurements and calculations are needed and are easy to transport and install, as all essential components are packed compactly in a single package, ensuring safe delivery and ease of installation.
